Horizontal Hose Crimping Machines

ANISH HZ 300 :

•   "ANISH" HZ-300 Horizontal Hose crimping machines can extend their working range of Re-forced Hose Pipes from 6 mmto 50 mm diameter (Nominal bore).
•   The machine is also provided with replaceble Pre-crimping tools.
•   All the operational features are identical to that of previous model Hz-260.

Available with Standard Die Sets :

•   Φ17, Φ20, Φ24, Φ28, Φ32, Φ39, Φ45, Φ50, Φ55, Φ63, Φ69, Φ75, Φ88.

Salient Features :

•   Maximum crimping Size 3" 1-1/2" I.D. Hose with 6 spirals
•   Maximum crimping Size 2" I.D. with 4 spirals.
•   Hose feeding either from front or rear end of the machine.
•   Electrical setting device / mechanical setting devices for Crimp depth.
•   Operation with Push Button Control.
•   Standard 3 phase motor. (single phase motor on request)
•   Crimping and die retraction with hydraulic cylinders.
•   Setting of Crimp depth within 0.1 mm.

Optional Accessories :

•   Optional Die Sets : 100
•   Special Die Sets : Any size beyond this but less than 85.
•   Foot Switch Control.

  Microprocessor based controls with programmable settings

Die Selection Chart -HZ300

ANISH HZ 280 :

•   The machine functions with 8 Die segments moving radially in the Die magazine with the help of hydraulic cylinder.
•   The through opening of the machine is 0125 mm. which facilitates crimping of flanged and elbow fittings.
•   The quick movement of the Die magazine as high as 45 mm on diameter facilitates easy removal of hose assemblies with bends, elbows and flanged ends.

Available with Standard Die Sets :

•   Φ16, Φ19, Φ22, Φ26, Φ32, Φ39, Φ50, Φ57, Φ69

Salient Features :

•   Max crimping size 1" I.D. pipewith 4 spirals.

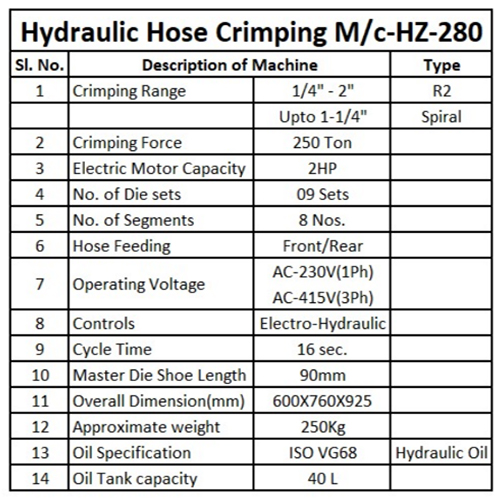

TECHNICAL SPECIFICATIONS :

Die Selection Chart -HZ280

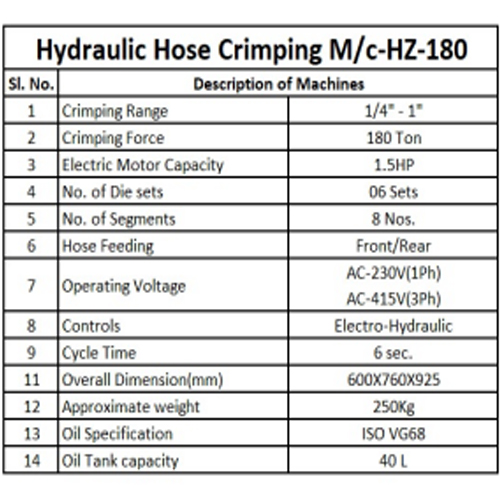

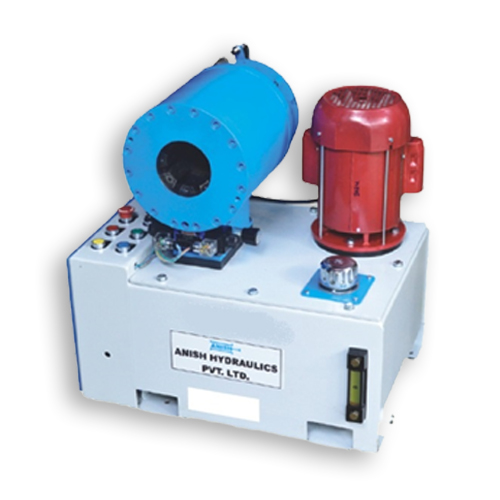

ANISH HZ 180 :

•   "ANISH" has another range of hydraulically powered crimping machines in the Horizontal type. They are simple in design and very rugged in construction.
•   These machines are suitable for service duty and small batch production as well. The machines can handle crimping operations on pipe types upto SAE 10 0 R9 hosesfrom 6 mmto 25 mm inside diameter.
•   "ANISH HZ 180 machines find this application most suitable invarious repair and spares shops.

Available with Standard Die Sets :

•   Φ14, Φ17, Φ20, Φ24, Φ28, Φ32, Φ40

Salient Features :

•   Max crimping size 11.D. pipewith 4 spirals.
•   Compact reliable in operation. Stepless adjustment to crimp diameter with a very positive and simple, easy to use setting device.
•   The accuracy of crimpingdiameter is 0.1mm.
•   Operation with pushbutton control.
•   Hose feeding from both rear & front of the machine.
•   Fast and easy Die Changing.
•   Standard 3 phase motor. (single phase motor on request)

Optional Accessories :

•   Special Die Sets : Any size beyond this but less than Φ40
•   Optional Dies :Φ26
•   Electrical Crimp Depth Control

Die Selection Chart -HZ180
